Husky 1590 Air-Operated Diaphragm Pumps

Categories: ,

Description

1,5 inch Positive Displacement Double Diaphragm Pump
The Husky 1590 has a 1,5 inch (38.1 mm) connection and is available in aluminum, stainless steel and polypropylene.

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Benefits of the Husky 1590 double diaphragm pumps

  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
  • Expanded material offering to handle endless applications
  • Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
  • Offered in ATEX configuration.
Overview
Maximum fluid flow
100 gpm (378.5 l/min)
Maximum Fluid Discharge Pressure
120 psi (8,4 bars, 0,84 MPa)
Maximum size pumpable solids
3/16 in (4.8 mm)
Fluid displacement per cycle
0.5 g (1,9 liter)

Husky 1590 Performance

Looking for a repair kit? Use our pump configuration tools to select the repair kit for your pump:

  • Step 1 – Go to our Pump Selector Tool
  • Step 2 – Fill in your pumps part number in the right corner
  • Step 3 – Get an overview of all repair kits and accessories for your pump.
  • 1-1/2 in. (38.1 mm) ANSI end-porting
  • High flow – 100 gpm (378 lpm) in a compact, portable size
  • Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
  • Lube-free operation
  • Available in polypropylene, aluminum and stainless steel
  • Epoxy-coated air section for tough environmental conditions

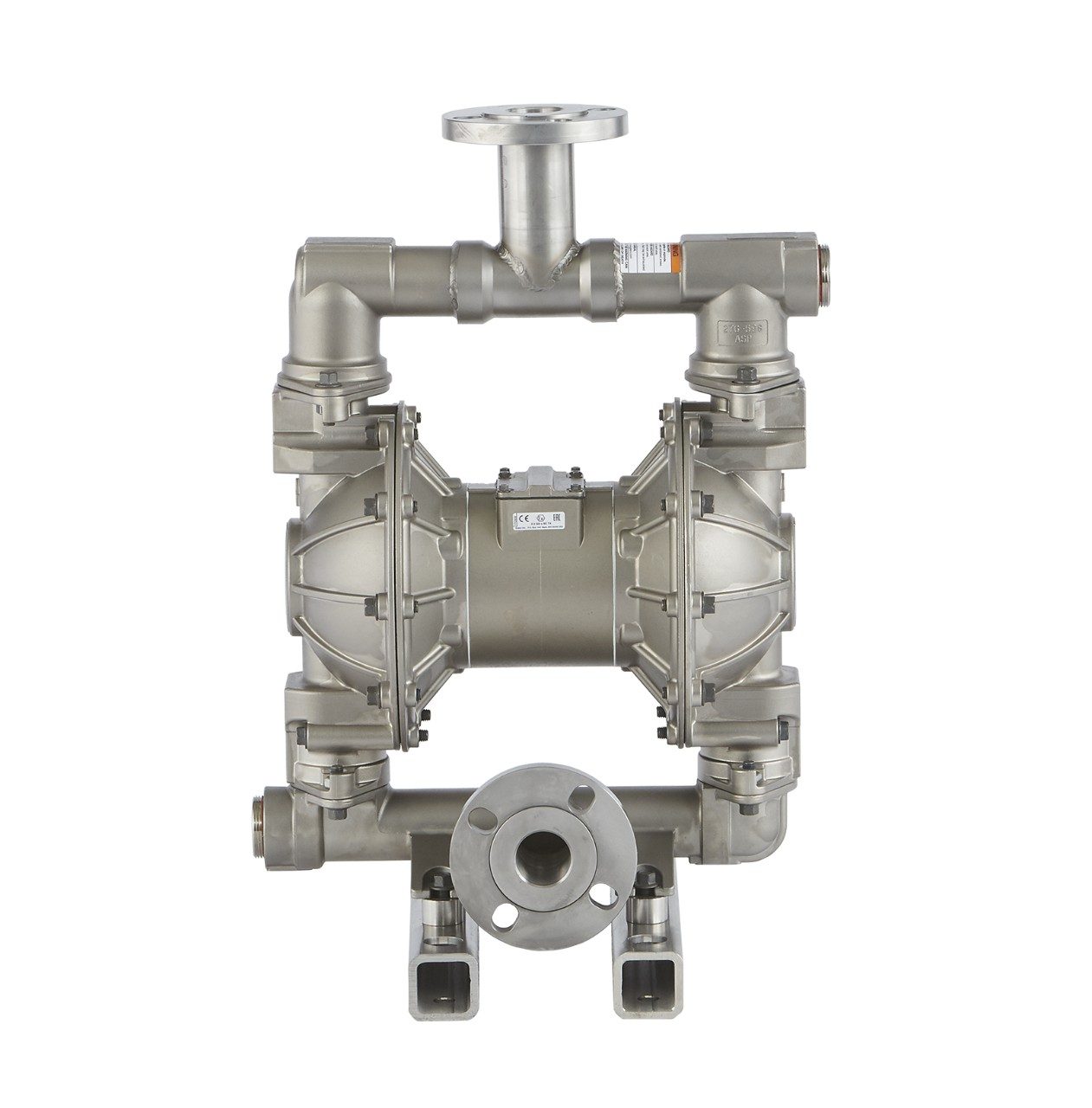

Husky 1590 Aluminum and Stainless Steel Air-Operated Diaphragm Pump
Maximum fluid working pressure
8 bar, 0.8 MPa
Air pressure operating range
1.4-8 bar, 0.14-0.8 MPa
Maximum air consumption
125 scfm
Air consumption at 70 psi/60 gpm
50 scfm (see instruction manual chart)
Maximum free-flow delivery
378.5 l/min
Maximum pump speed
200 cpm
Gallons (liters) per cycle
1.9 l
Maximum suction lift
5.48 m wet or dry
Maximum size pumpable solids
4.8 mm
*Maximum noise level at 100 psi, full flow
94 dBa
*Sound power level
108 dBa
*Noise level at 70 psi, 50 cycles/min
72 dBa
Maximum Operating Temperature
Models without PTFE Diaphragms
65.5°C
Models with PTFE Diaphragms
93.3°C
Air inlet size
0.5 npt(f)
Fluid inlet size
1.5 npt(f)
Fluid outlet size
1.5 npt(f)
Wetted parts
Vary by model, see instruction manual
Non-wetted external parts
Aluminum, 302, 316 stainless steel, polyester (labels)
Weight
Aluminum Pumps
15.2 kg
Stainless steel pumps with aluminum center section
32.7 kg
Stainless steel pumps with stainless steel center section.
40 kg
Geolast® is a registered trademark of the Exxon Mobil Chemical Co. Santoprene® is a registered trademark of the Monsanto Co. Loctite® is a registered trademark of the Loctite corporation. * Noise levels measured with the pump mounted on the floor using Rubber Foot Kit 236452. *Sound power measured per ISO Standard 9216.
Husky 1590 Polypropylene and PVDF Air-Operated Diaphragm Pumps
Maximum fluid working pressure
8.4 bar, 0.84 MPa
Air pressure operating range
1.4-8.4 bar, 0.14-0.84 MPa
Maximum air consumption
125 scfm
Air consumption at 70 psi/60 gpm
50 scfm (see chart in manual)
Maximum free flow delivery
378.5 lpm
Maximum pump speed
200 cpm
Gallons (liters) per cycle
1.9 l
Maximum suction lift
5.48 m wet or dry
Maximum size pumpable solids
4.8 mm
*Maximum noise level at 100 psi, 50 cpm
94 dBa
Sound power level
108 dBa
*Noise level at 70 psi 50 cycles/min
72 dBa
Maximum Operating Temperature
65.5°C
Air inlet size
1/2 npt(f)
Fluid inlet size
1–1/2 in, raised face flange
Fluid outlet size
1–1/2 in, raised face flange
Wetted parts
Vary by model. See manual.
Non-wetted external parts
Aluminum, 302 and 316 stainless steel polyester (labels)
Weight
Polypropylene Pumps with aluminum center section
16 kg
PVDF Pumps with aluminum center section
22 kg
Polypropylene Plus Pumps with stainless steel center section
23 kg
PVDF Pumps with stainless steel center section
30 kg
® and Santoprene® are registered trademarks of the Monsanto Co. Loctite® is a registered trademark of the Loctite corporation.* Noise levels measured with the pump mounted on the floor using Rubber Foot Kit 236452. Sound power measured per ISO Standard 9216.



Additional information

Brand

GRACO

Model

Husky 1590 Aluminum, Husky 1590 Polypropylene, Husky 1590 PVDF, Husky 1590 Stainless Steel
